Inverter Horizontal Condensing Units

Inverter horizontal condensing units is also called inverter condensing unit or dc condensing unit.

● Cryogenic Capability;
● Dual-Energy Saving Architecture;
● Precision & Silence Control;
● Global Power Compatibility;
● Triple-Layer Protection;
● 30 Years of Industry Expertise;
● Patented Technology Leadership;
● Rapid Manufacturing Capacity;
● Sustainability-Driven R&D;
● Elite Engineering Team;
● Globally Certified Quality
● Proven Global Reliability.


Availability:



Inquire

We're professional horizontal condensing unit manufacturers and suppliers in China, to buy or wholesale inverter condensing unit from our factory. For quotation or if you have any questions, contact us now for customized dc condensing unit and price.

DC Inverter Horizontal Condensing Unit is engineered for the demanding refrigeration needs of modern supermarkets. It serves as the ideal, high-efficiency cooling solution for commercial refrigeration equipment such as refrigerated air curtains, frozen glass door cabinets, and island display cases. Combining energy efficiency, space optimization, and intelligent control, this unit is dedicated to providing an optimal preservation environment for your merchandise while reducing operational costs.

Product Features

1. High Efficiency & Energy Saving: Features DC inverter technology with a high-efficiency rotary compressor, significantly reducing energy consumption and delivering outstanding electricity savings.

2. Ultra-Slim Design, Space Optimizer: With an overall height of only 260mm, it minimizes space occupancy, maximizing the usable internal volume of the cabinet.

3. Compact Structure, Easy Installation: Boasts a compact and streamlined design, ensuring hassle-free installation and operation, saving time and labor costs.

4. Intelligent Inverter, Stable & Durable: Intelligently senses cabinet load changes and automatically adjusts compressor speed continuously. This prevents frequent on/off cycling, saving energy while significantly extending compressor lifespan.

5. Soft Start Technology, Efficient & Reliable: Utilizes unloading and low-frequency start-up technology to drastically reduce starting current surges, enhancing system reliability and contributing to further energy savings.

6. Precise Temperature Control, Freshness Guardian: Delivers highly accurate temperature control within the cabinet, maintaining minimal temperature fluctuations to ensure superior food freshness and optimal display quality.

Applications

DC Inverter Horizontal Condensing Unit is engineered for the demanding refrigeration needs of modern supermarkets. It serves as the ideal, high-efficiency cooling solution for commercial refrigeration equipment such as refrigerated air curtains, frozen glass door cabinets, and island display cases. Combining energy efficiency, space optimization, and intelligent control, this unit is dedicated to providing an optimal preservation environment for your merchandise while reducing operational costs.

1. Retail Stores: Convenience stores/Supermarkets: Display chillers, modular cold rooms, island freezers

2. Medical & Pharma: Hospitals/Pharma plants Vaccine cold stores, blood bank refrigerators, medicine storage

3. Food Processing: Central kitchens

4. Logistics Warehousing: Cold chain hubs

5. Transport Refrigeration: Reefer trucks/vessels

6. Special Applications: Mobile units

Production scene

Horizontal condensing unit Manufacturer

Nanfeng Cold Chain focuses on providing high-quality horizontal condensing unit and excellent service since 1996. We are a professional manufacturer and factory which mainly produce Air Cooled Condensing Unit, Water Cooled Condensing Unit, Evaporator & Air cooler products for around 30 Years of Industry Expertise. Nanfeng Cold Chain provides you with wholesale, customization, design, packaging, industry solutions, OEM & ODM service.

If you have any questions about horizontal condensing unit, inverter condensing unit, dc condensing unit, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Air Cooled Condensing Unit, Water Cooled Condensing Unit, Evaporator & Air cooler... Welcome you to visit our factory!

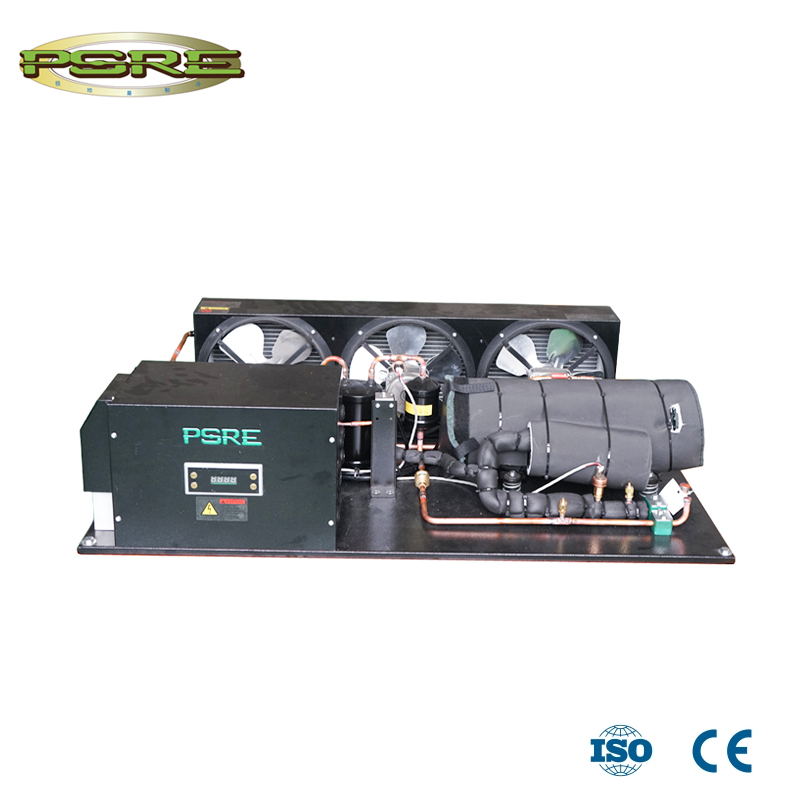

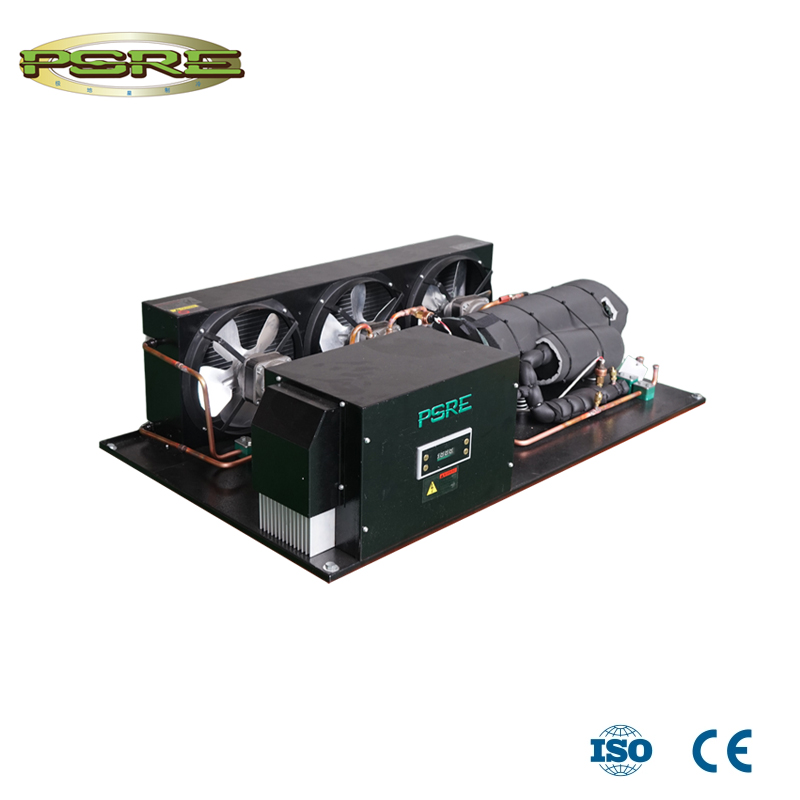

Horizontal Air-Cooled Condensing Units

Model			NFKHR-100ZGML	NFKHR-150ZGML	NFKHR-200ZGML	NFKHR-250ZGML
Power(HP)			1	1.5	2	2.5
Compressor			VBD150LKQ	VBD150LKQ	DBH250LDP	DBH250LDP
Frequency Range(Hz)			30～60	30～80	30～60	30～80
Supply			220V～1～50Hz	220V～1～50Hz	220V～1～50Hz	220V～1～50Hz
Refrigerant			R404A、R448A、R449A、R452A
Ambient Temp			0℃～43℃
Evaporating Temp			-35℃～10℃
Condenser	Dimensions		41090240	660125240	880155255	1045135245
	Fan Motor	Output Power(W)	16*1	16*2	16*3	16*4

		Diameter(mm)	φ230	φ230	φ230	φ230
		Quantity	1	2	3	4
		(m³/hr)Air Flow	700	1400	2100	2800
Pipe	Gas Pipe（Inch）		Φ12.7(1/2")
	Liquid Pipe（Inch）		φ9.52(3/8")
Dimensions	Length(mm)		680	790	1050	1150
	Depth(mm)		625	625	625	625
	Height(mm)		260	260	260	260

Model	NFKHR-100ZGML			NFKHR-150ZGML			NFKHR-200ZGML			NFKHR-250ZGML
Evap.Temp.	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz
-35℃	0.35	0.51	0.67	0.37	0.59	0.93	0.53	0.79	1.05	0.56	0.92	1.46
-30℃	0.45	0.64	0.85	0.47	0.75	1.20	0.67	1.00	1.34	0.70	1.17	1.87
-25℃	0.57	0.82	1.08	0.60	0.95	1.50	0.84	1.26	1.68	0.88	1.47	2.34
-20℃	0.71	1.02	1.34	0.75	1.18	1.88	1.05	1.57	2.09	1.10	1.83	2.91
-15℃	0.88	1.27	1.66	0.93	1.46	2.32	1.30	1.94	2.57	1.37	2.25	3.59
-10℃	1.08	1.54	2.03	1.13	1.79	2.84	1.58	2.36	3.14	1.66	2.75	4.38
-5℃	1.31	1.88	2.47	1.38	2.18	3.46	1.92	2.87	3.81	2.02	3.34	5.32
R404A Refrigeration Capacity (kW) Ambient Temp.25℃ Suction Temp.5℃

Model	NFKHR-100ZGML			NFKHR-150ZGML			NFKHR-200ZGML			NFKHR-250ZGML
Evap.Temp.	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz
-35℃	0.27	0.39	0.51	0.28	0.45	0.71	0.41	0.61	0.81	0.43	0.71	1.12
-30℃	0.37	0.53	0.70	0.39	0.62	0.99	0.55	0.83	1.11	0.58	0.97	1.54
-25℃	0.49	0.71	0.93	0.52	0.82	1.30	0.73	1.09	1.45	0.76	1.27	2.02
-20℃	0.64	0.91	1.20	0.67	1.06	1.68	0.94	1.41	1.87	0.98	1.64	2.60
-15℃	0.79	1.14	1.49	0.83	1.31	2.08	1.17	1.74	2.31	1.23	2.02	3.22
-10℃	1.00	1.42	1.87	1.04	1.65	2.62	1.46	2.18	2.90	1.53	2.54	4.04
-5℃	1.24	1.78	2.34	1.30	2.06	3.27	1.82	2.71	3.60	1.91	3.16	5.03
R448A/R449A Refrigeration Capacity (kW) Ambient Temp.25℃ Suction Temp.5℃

Model	NFKHR-100ZGML			NFKHR-150ZGML			NFKHR-200ZGML			NFKHR-250ZGML
Evap.Temp.	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz
-35℃	0.31	0.45	0.59	0.33	0.52	0.82	0.47	0.70	0.92	0.49	0.81	1.28
-30℃	0.41	0.59	0.78	0.43	0.69	1.10	0.61	0.92	1.23	0.64	1.07	1.71
-25℃	0.53	0.77	1.01	0.56	0.89	1.41	0.79	1.18	1.57	0.82	1.38	2.19
-20℃	0.68	0.97	1.28	0.72	1.13	1.79	1.00	1.50	1.99	1.05	1.75	2.78
-15℃	0.84	1.21	1.59	0.89	1.39	2.22	1.24	1.85	2.45	1.31	2.15	3.43
-10℃	1.05	1.49	1.97	1.10	1.74	2.75	1.53	2.29	3.05	1.61	2.67	4.25
-5℃	1.29	1.84	2.42	1.35	2.14	3.39	1.88	2.82	3.74	1.98	3.28	5.22
R452A Refrigeration Capacity (kW) Ambient Temp.25℃ Suction Temp.5℃

Model	NFKHR-100ZGML			NFKHR-150ZGML			NFKHR-200ZGML			NFKHR-250ZGML
Evap.Temp.	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz	30Hz	45Hz	60Hz	30Hz	50Hz	80Hz
-35℃	0.29	0.42	0.55	0.30	0.48	0.76	0.43	0.65	0.86	0.46	0.75	1.20
-30℃	0.37	0.52	0.70	0.39	0.62	0.98	0.55	0.82	1.10	0.57	0.96	1.53
-25℃	0.47	0.67	0.89	0.49	0.78	1.23	0.69	1.03	1.38	0.72	1.21	1.92
-20℃	0.58	0.84	1.10	0.62	0.97	1.54	0.86	1.29	1.71	0.90	1.50	2.39
-15℃	0.72	1.04	1.36	0.76	1.20	1.90	1.07	1.59	2.11	1.12	1.85	2.94
-10℃	0.89	1.26	1.66	0.93	1.47	2.33	1.30	1.94	2.57	1.36	2.26	3.59
-5℃	1.07	1.54	2.03	1.13	1.79	2.84	1.57	2.35	3.12	1.66	2.74	4.36
R290 Refrigeration Capacity (kW) Ambient Temp.25℃ Suction Temp.5℃

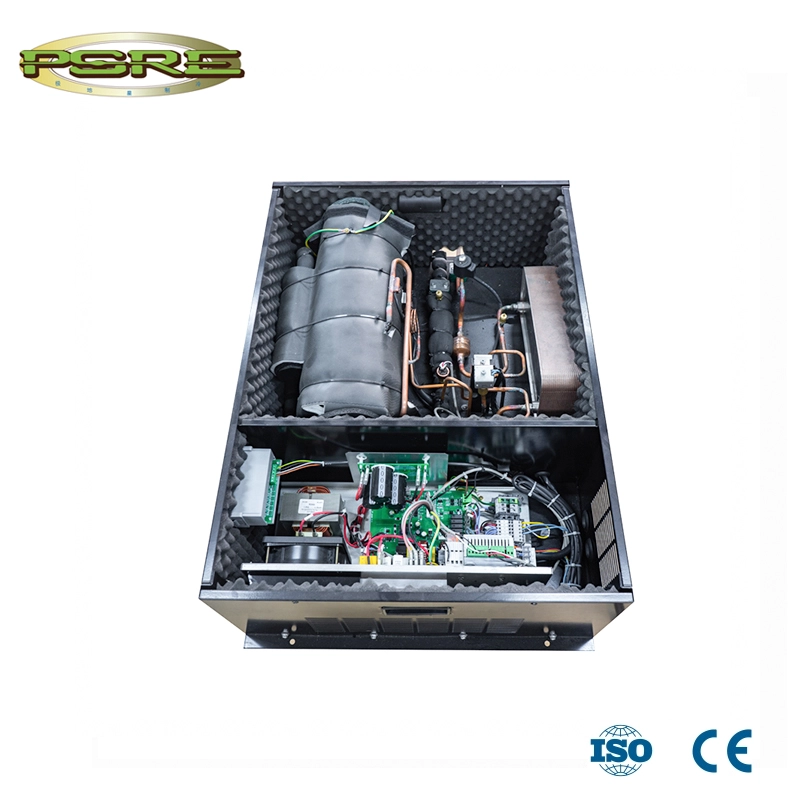

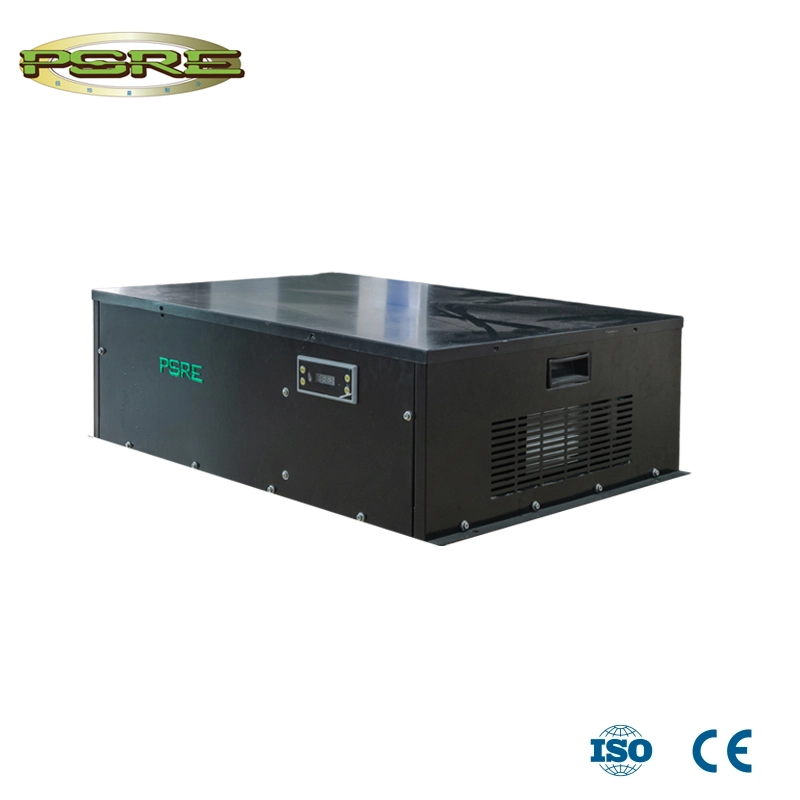

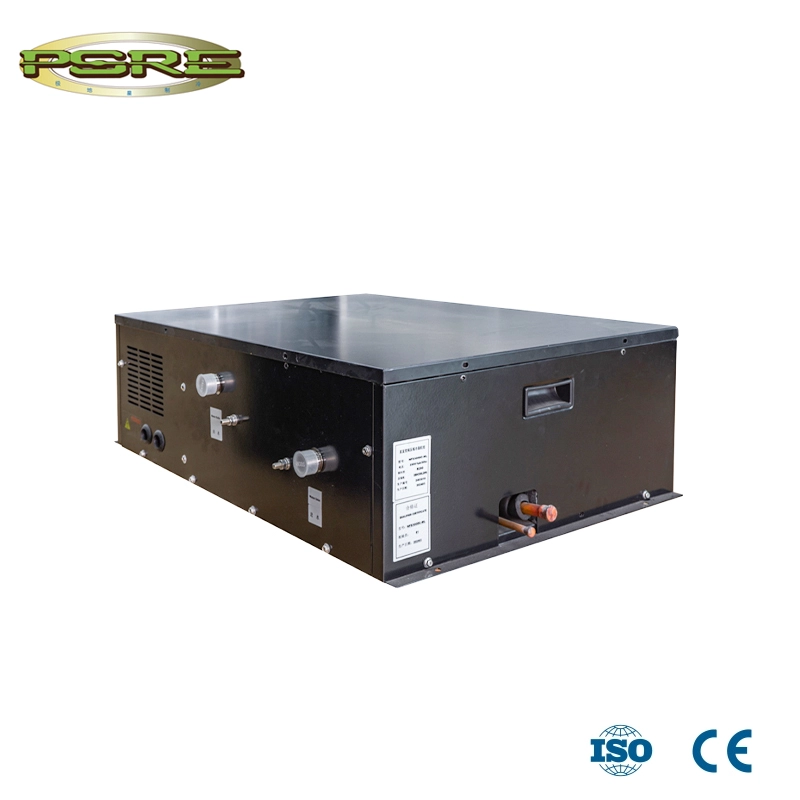

Horizontal Water-Cooled Condensing Units

Model				NFSP150	NFSP200	NFSP250	NFSP300
Horse Power（HP）				1.5P	2P	2.5P	3P
Power Source				220V-1-50Hz/60Hz	220V-1-50Hz/60Hz	220V-1-50Hz/60Hz	220V-1-50Hz/60Hz
Running Frequency（Hz）				30～90	30～70	30～80	30～80
Compressor				VBD150LKQ	DBH250LDP	DBH250LDP	DBH356LDP
Refrigeration Oil				HAF68D1C
Heat Exchange Capacity Of Condenser（kW）				4.23	5.26	5.94	8.45
Maximum Input Power（kW）				1.15	1.60	1.80	2.70
Maximum Starting Current（A）				2.1	5.3	5.3	5.8
Scope Of Use		Evaporation Temperature（℃）		-35℃～10℃
		Ambient Temperature（℃）		≤43℃
Dimensions		W（mm）		630	800	800	800
		D（mm）		500	580	580	580
		H（mm）		220	250	250	250
Pipe Size		Liquid（Inch）		3/8	3/8	3/8	3/8
		Gas（Inch）		1/2	5/8	5/8	5/8
Cooling Water Parameters		Water Pipe Size（Inch）		6（3/4"）
		Discharge		1.5m³/h	1.8m³/h	1.8m³/h	2.0m³/h
(R404A) Refrigerating Capacity	Evaporating Temp	-10℃	Qo（kW）/Pe（kW）	3.23/1.34	4.09/1.60	5.00/2.35	5.77/2.70
		-30℃	Qo（kW）/Pe（kW）	1.39/1.10	1.73/1.50	1.90/1.60	3.41/2.20
(R290) Refrigerating Capacity	Evaporating Temp	-10℃	Qo（kW）/Pe（kW）	2.83/1.15	3.41/1.60	3.89/1.80	4.91/2.70
		-30℃	Qo（kW）/Pe（kW）	1.18/0.90	1.44/1.30	1.64/1.50	2.28/2.10
(R448A/R449A) Refrigerating Capacity	Evaporating Temp	-10℃	Qo（kW）/Pe（kW）	3.13/1.20	3.69/1.50	4.51/1.80	5.27/2.60
		-30℃	Qo（kW）/Pe（kW）	1.26/1.00	1.89/1.20	2.12/1.50	3.11/2.10
Note: The ambient temperature is 32 ℃, the condensation temperature is 45 ℃, and the data error is ± 5%.
